LC LED-Q753RGB4D: 5mm Super
Flux RGB LED Lamp (Cathode)
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(5) Moisture &
UV Resistance Epoxy Len |
|
(2) Water Clear 5mm
LED Lens |
(6) Sun Light
Viewable LED Lamp |
|
(3) Excellent color
mixing characteristics |
(7) Rugged design
suitable for both indoor & outdoor use |
|
(4) Common Cathode |
|

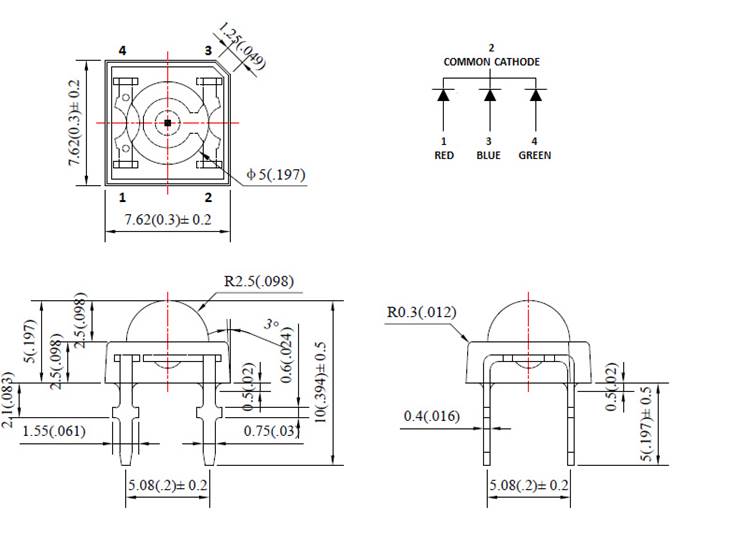

DEVICE DRAWING
ABSOLUTE
MAXIMUM RATING (Ta = 250C)
|
PARAMETER |
SYMBOL |
MAXIMUM |
UNIT |
|
DC
Forward Current |
IF |
30 |
mA |
|
Peak
Forward Current (1) |
IFP |
100 |
mA |
|
Reverse
Voltage |
VR |
5 |
V |
|
Operating
Temperature |
Topr |
-40 to +100 |
0C |
|
Storage
Temperature |
Tstg |
-40 to +100 |
0C |
|
Soldering
Temperature |
Tsol |
Max. 2600C
for 5 second, |
0C |
(1) Pulse conditions of 1/10 duty cycle and
0.10msec max. width
ELECTRICAL
AND OPTICAL CHARACTERISTICS (Ta = 250C)
|
PARAMETER |
SYMBOL |
TEST CONDITIONS |
MIN. |
TYP. |
MAX. |
Units |
|
Forward Voltage |
VF |
Green, Blue |
2.8 |
|
3.5 |
V |
|
Red |
1.8 |
|
2.3 |
V |
||
|
Reverse Current |
IR |
VR = 5V |
|
|
10 |
mA |
|
Dominant |
lD |
Red |
|
630 |
|
nm |
|
Green |
|
530 |
|
nm |
||
|
Blue |
|
470 |
|
nm |
||
|
Luminous Intensity |
IV |
Red |
3,500 |
5,000 |
|
|
|
Green |
4,500 |
8,000 |
|
|||
|
Blue |
3,000 |
5,000 |
|
|||
|
Total Angle |
ɸR |
|
|
90 |
|
Degree |
|
